Brand Name: Tianzhong
Place of Origin: Henan, China
Screen Diameter(mm): 400–2000
Screen Mesh Size: 2-500 mesh or customized
Layers: 1-5 layers
Power (kW): 0.7
Material: Stainless Steel / Carbon Steel
Customization Services: All components can be customized
Applicable Industries: Food Industry, Pharmaceutical Industry, Battery Materials, Silicon Materials, Chemical Industry, Metals, Metallurgical Mining, Non-Metallic Industries, and other sectors.

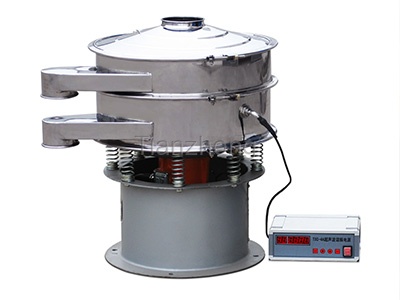

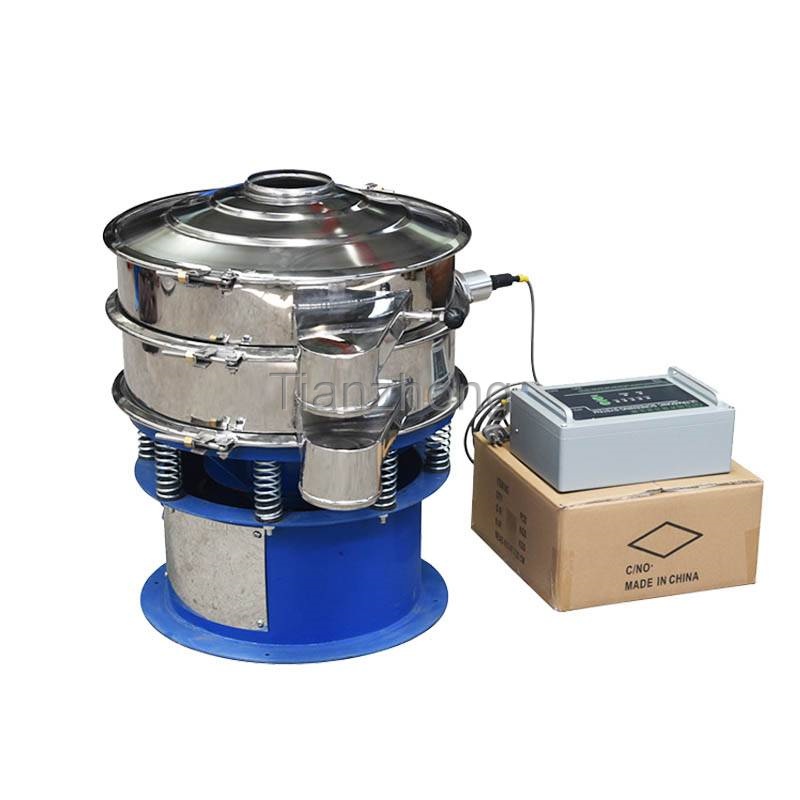

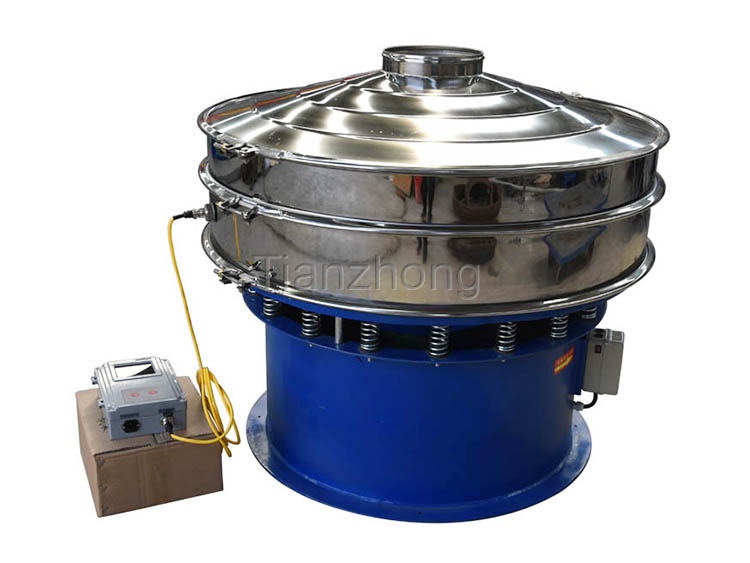

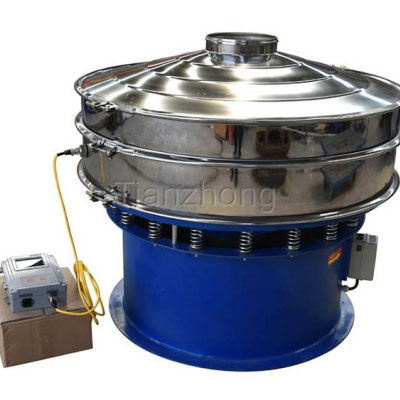

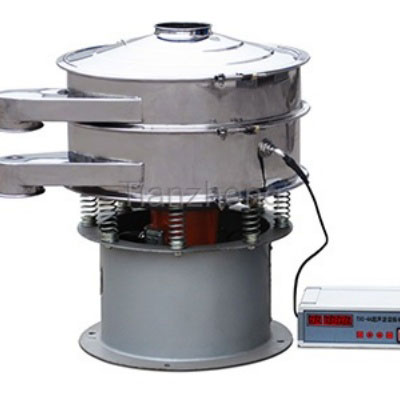

The ultrasonic vibrating screen is an advanced sieving machine that integrates ultrasonic technology with high-frequency vibration to achieve ultra-fine and efficient particle separation. It is specially designed to handle difficult-to-screen materials, such as those with strong adhesion, static charges, lightweight properties, or tendencies to agglomerate.
Self-cleaning function prevents clogging of mesh holes.
No need to add anti-blocking devices such as ball bearings，and long screen mesh service life.
Suitable for 40-635 mesh, especially for screening particles below 100 mesh.
Screening particle size can increase production by 1-70%, with a maximum increase of 10 times.
The ultra-high screening fineness effectively solves screening problems such as strong adsorption, easy agglomeration, high static electricity, and high density with low specific gravity.

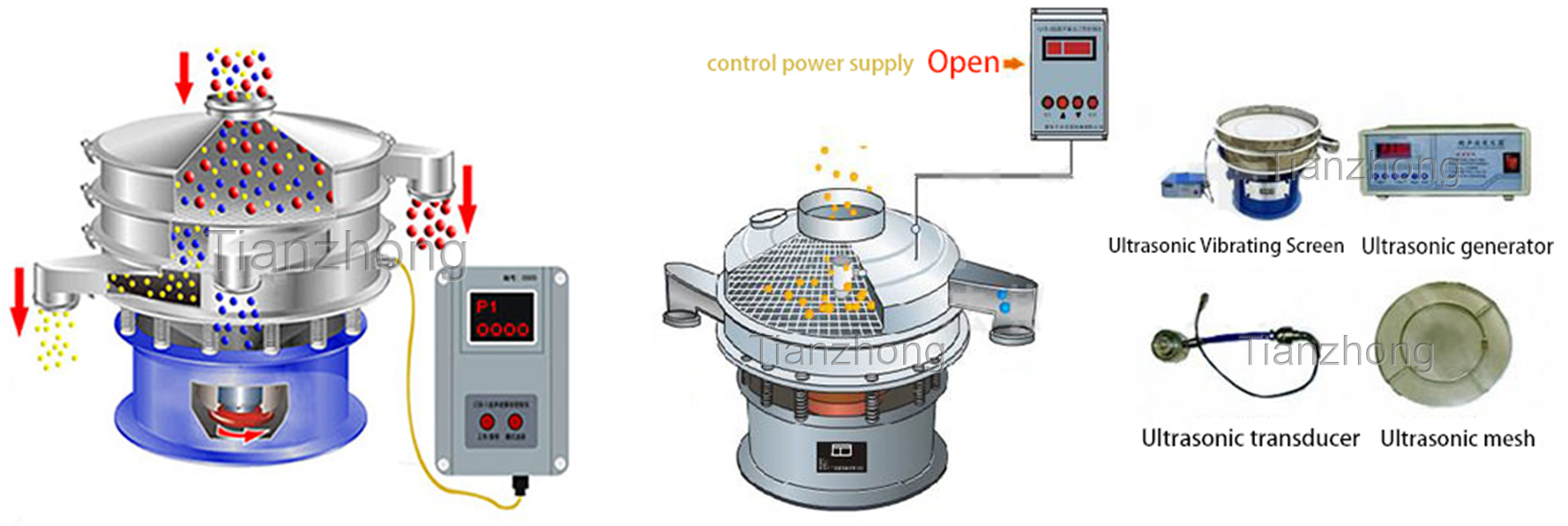

The basic principle of the ultrasonic vibrating screen is that the high-frequency electric oscillation generated by the oscillator is converted into sinusoidal and longitudinal oscillation by the transducer. These fluctuations are transmitted to the pre-tuned rod resonator, and then uniformly transmitted to the screen surface.
| Model | Parameter | Category | Parameter |
|---|---|---|---|
| Frequency | 35KHZD | Electrical system and dimension | 300mm*300mm*300mm |
| Power supply | 220V-240V50/60HZ | Clamshell | 1p65 |
| Working mode | Contact work style | Adjustment range | 50-100% |
| Maximum environmental temperature | -10~45°C | Resonator | Plug type |
Pharmaceuticals: APIs, powders, granules
Chemicals: Paints, pigments, resins
Food Industry: Flour, starch, additives
Metallurgy: Metal powders, abrasives
New Energy: Battery materials (lithium, graphite)
According to the customer's upstream and downstream products and on-site space, we modify the equipment size and customize the equipment structure to meet the customer's needs.
Specialized in production for 15 years, serving 30+ countries worldwide, the technical team is experienced to ensure the efficient and stable operation of the equipment.
From the selection of materials to the factory, the implementation of ISO9001 standards, 100% full inspection of key components, to ensure the durability and reliability of the equipment.
24-hour response, provide installation, commissioning, maintenance one-stop support, full tracking after-sales, to ensure worry-free production.
Own production base, no middleman price difference, support customized production, lower price and faster delivery for the same quality.
Provide lifelong technical support, over the warranty period is still enjoying the cost of maintenance, equipment full life cycle protection.
Henan Tianzhong Vibration Equipment Co., Ltd. integrates “research and development, production, sales and service”, with an annual production capacity of more than 5,000 units, and its products cover the three major fields of vibrating screening, conveying and lifting, and dust removal, including rotary vibrating screen, vacuum feeder, dust-free feeding station, ton bag feeding station, and customized various kinds of dust-free powder supply system, which are committed to dozens of series of dust-free powder screening and mixing one-stop solutions. The products are widely used in medicine, chemical industry, abrasives, ceramics, mining, food, metallurgy and other industries, and for a long time for the domestic more than 150 counterparts to provide OEM services, and many large-scale enterprises to establish long-term supporting cooperation. Relying on standardized CAD design and strict quality control system, our products are known for high precision and stability, and are exported to the United States, France, Russia, Australia and Southeast Asia and other countries and regions.
Want to know the best price or customization options? Contact us today.
Send us your material and requirements — we’ll recommend the right model for you.
We are a high-tech enterprise specializing in the research, development and production of vibrating screening, conveying and lifting, crushing and mixing equipment, with products including but not limited to:
●Vacuum Feeder
●Small Bag Dust-free Feeding Station
●Ton Bag Feeding Station
●Powder Supply System
●Circular Swing Screen Series
●Vibrating Screen
We support customized production to meet the special needs of different industries.
Of course, we will design according to customer requirements.
5-10 working days for conventional products.
We have a large factory in Xinxiang, China, covering an area of 12,000 square meters. Welcome to visit!
We usually accept T/T, L/C，T/T: 30% in advance as down payment, the balance before delivery.
We provide 1-2 years warranty (depending on the model), after-sales team responds within 24 hours, support remote guidance or on-site repair.
