Brand Name: Tianzhong
Place of Origin: Henan, China
Screen Diameter(mm): Based on different models
Screen Mesh Size(mesh): ≤1000
Layers: 1-8
Power (kW): 0.18
Material: Stainless Steel / Carbon Steel
Customization Services: All components can be customized
Applicable Industries: Food Industry, Pharmaceutical Industry, Chemical Industry, Metallurgical Mining, Agriculture Industries, etc.

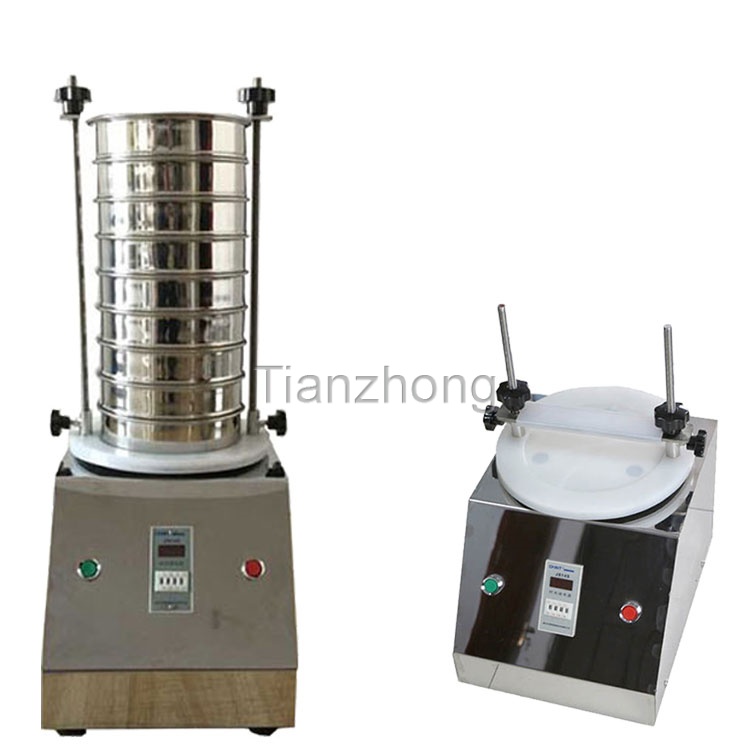

The lab test sieve shaker is a high-precision sieving instrument designed for particle size analysis in laboratory settings. It ensures accurate, repeatable results for quality control, research, and material testing across various industries. With adjustable vibration intensity and reliable performance, it is ideal for dry or wet sieving of powders, granules, and suspensions.
Small size, high efficiency.For powder, it can reach 400 mesh.
No mechanical action, very low maintenance costs, simple and convenient cleaning and replacement of screens.
This series of machines is not only used for powder separation, but also for mixing, granulation and filtration.
All materials in contact with the product are stainless steel (304).
The flexible design is suitable for a variety of uses.

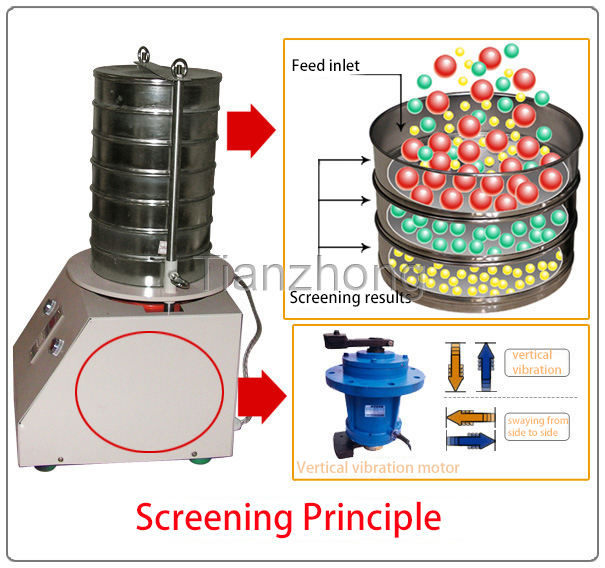

The lab test sieve shaker uses three-dimensional vibration in conjunction with precision sieve screens to achieve precise material classification. When the equipment is in operation, the motor drives an eccentric block to generate regular three-dimensional vibrations (horizontal, vertical, and throwing movements), causing the sample to form effective relative motion on the sieve screen. Finer particles pass through the mesh under the influence of vibration to achieve classification, while larger particles move along the sieve surface and are ultimately discharged through the discharge port.

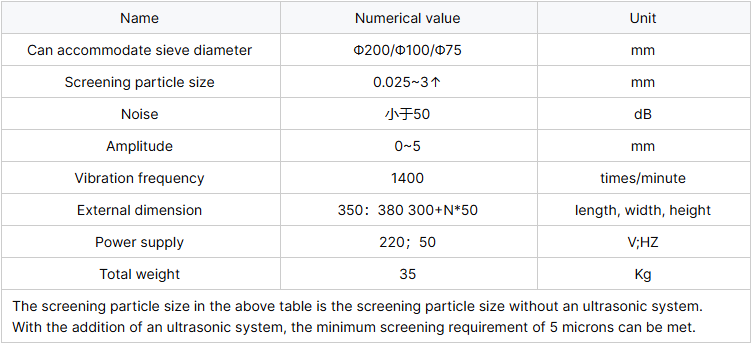

| Name | Numerical value | Unit |
|---|---|---|
| Can accommodate sieve diameter | Φ200/Φ100/Φ75 | mm |
| Screening particle size | 0.025~3↑ | mm |
| Noise | less than 50 | dB |
| Amplitude | 0~5 | mm |
| Vibration frequency | 1400 | times/minute |
| External dimension | 350: 380 300+N*50 | length/width/height |
| Power supply | 220; 50 | V;HZ |
| Total weight | 35 | Kg |
✔ Pharmaceuticals – Powder consistency testing, API analysis
✔ Food & Agriculture – Flour, starch, grain size analysis
✔ Construction – Cement, sand, aggregate grading
✔ Metallurgy & Mining – Metal powders, mineral particles
✔ Chemicals & Cosmetics – Pigments, fillers, raw material QC
According to the customer's upstream and downstream products and on-site space, we modify the equipment size and customize the equipment structure to meet the customer's needs.
Specialized in production for 15 years, serving 30+ countries worldwide, the technical team is experienced to ensure the efficient and stable operation of the equipment.
From the selection of materials to the factory, the implementation of ISO9001 standards, 100% full inspection of key components, to ensure the durability and reliability of the equipment.
24-hour response, provide installation, commissioning, maintenance one-stop support, full tracking after-sales, to ensure worry-free production.
Own production base, no middleman price difference, support customized production, lower price and faster delivery for the same quality.
Provide lifelong technical support, over the warranty period is still enjoying the cost of maintenance, equipment full life cycle protection.
Henan Tianzhong Vibration Equipment Co., Ltd. integrates “research and development, production, sales and service”, with an annual production capacity of more than 5,000 units, and its products cover the three major fields of vibrating screening, conveying and lifting, and dust removal, including rotary vibrating screen, vacuum feeder, dust-free feeding station, ton bag feeding station, and customized various kinds of dust-free powder supply system, which are committed to dozens of series of dust-free powder screening and mixing one-stop solutions. The products are widely used in medicine, chemical industry, abrasives, ceramics, mining, food, metallurgy and other industries, and for a long time for the domestic more than 150 counterparts to provide OEM services, and many large-scale enterprises to establish long-term supporting cooperation. Relying on standardized CAD design and strict quality control system, our products are known for high precision and stability, and are exported to the United States, France, Russia, Australia and Southeast Asia and other countries and regions.
Want to know the best price or customization options? Contact us today.
Send us your material and requirements — we’ll recommend the right model for you.
We are a high-tech enterprise specializing in the research, development and production of vibrating screening, conveying and lifting, crushing and mixing equipment, with products including but not limited to:
●Vacuum Feeder
●Small Bag Dust-free Feeding Station
●Ton Bag Feeding Station
●Powder Supply System
●Circular Swing Screen Series
●Vibrating Screen
We support customized production to meet the special needs of different industries.
Of course, we will design according to customer requirements.
5-10 working days for conventional products.
We have a large factory in Xinxiang, China, covering an area of 12,000 square meters. Welcome to visit!
We usually accept T/T, L/C，T/T: 30% in advance as down payment, the balance before delivery.
We provide 1-2 years warranty (depending on the model), after-sales team responds within 24 hours, support remote guidance or on-site repair.
