Brand Name: Tianzhong
Place of Origin: Henan, China
Flow rate(kN): 1550-997
Size of Damping Station (mm): Customized
Power (kW): 2
Material: 304/316L Stainless Steel / Carbon Steel
Customization Services: All components can be customized
Machinery Test Report: Provided
Application: Powder, Granules, Bulk solids, and other ingredients.
Applicable Industries: Chemical Industry, Food industry, Pharmaceutical industry, etc.

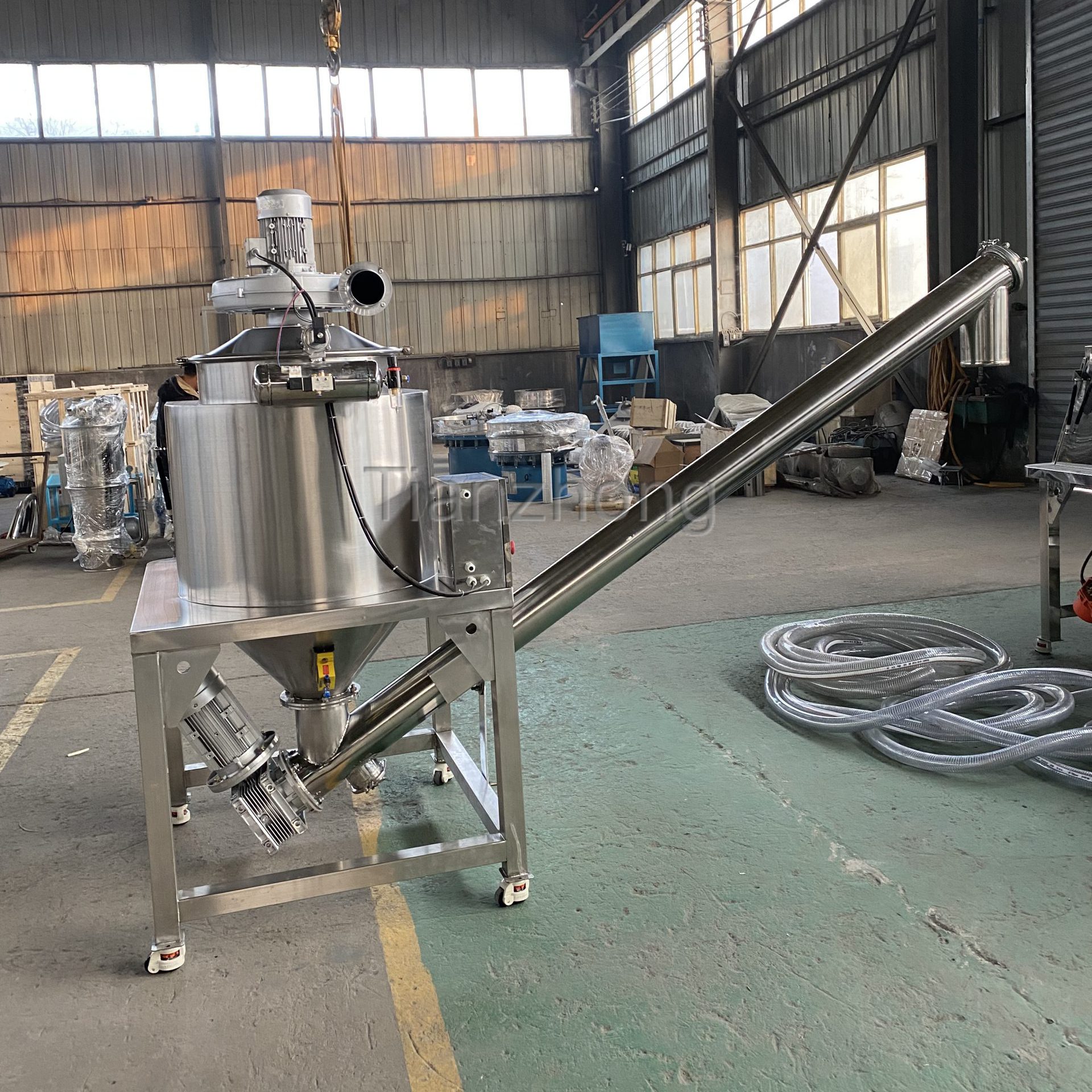

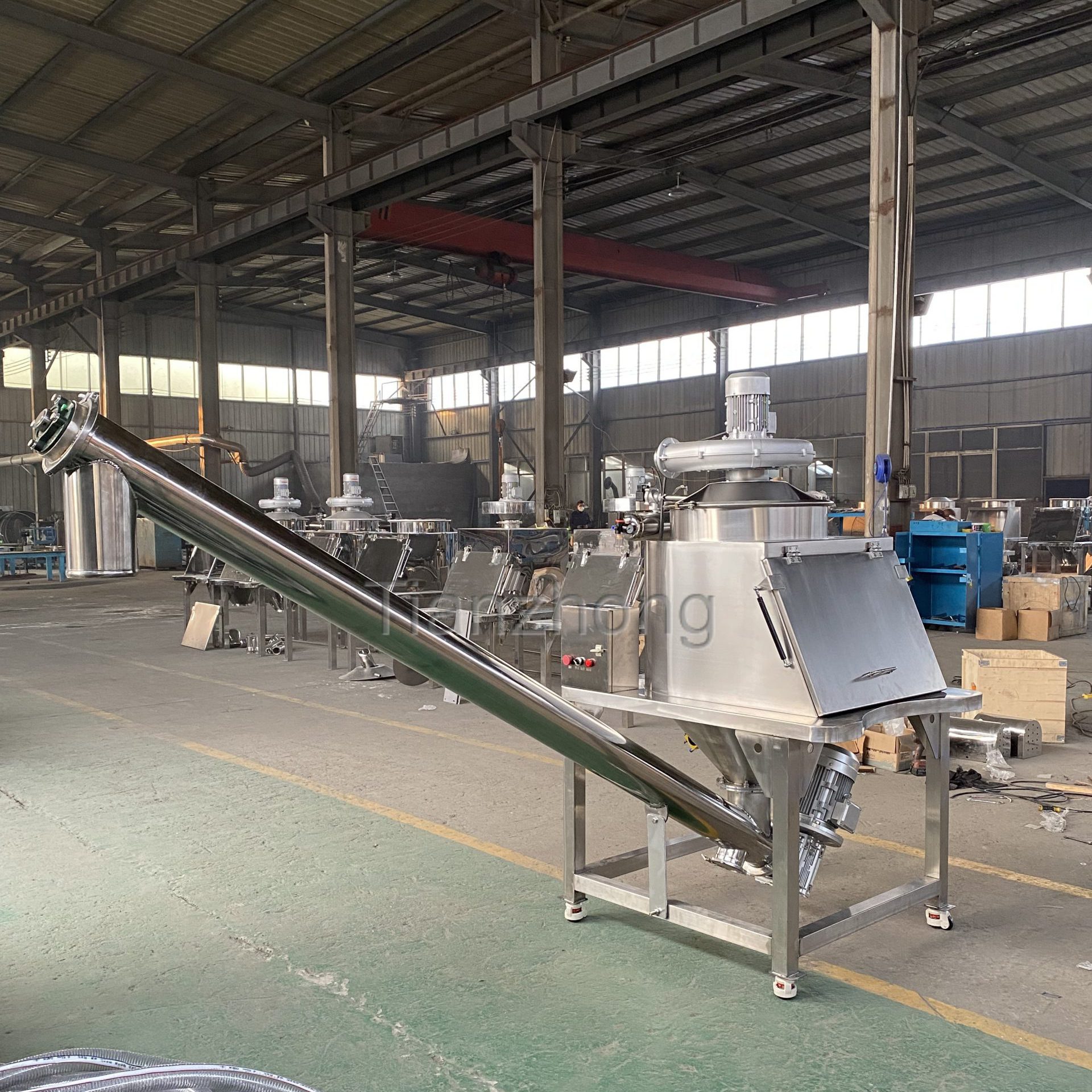

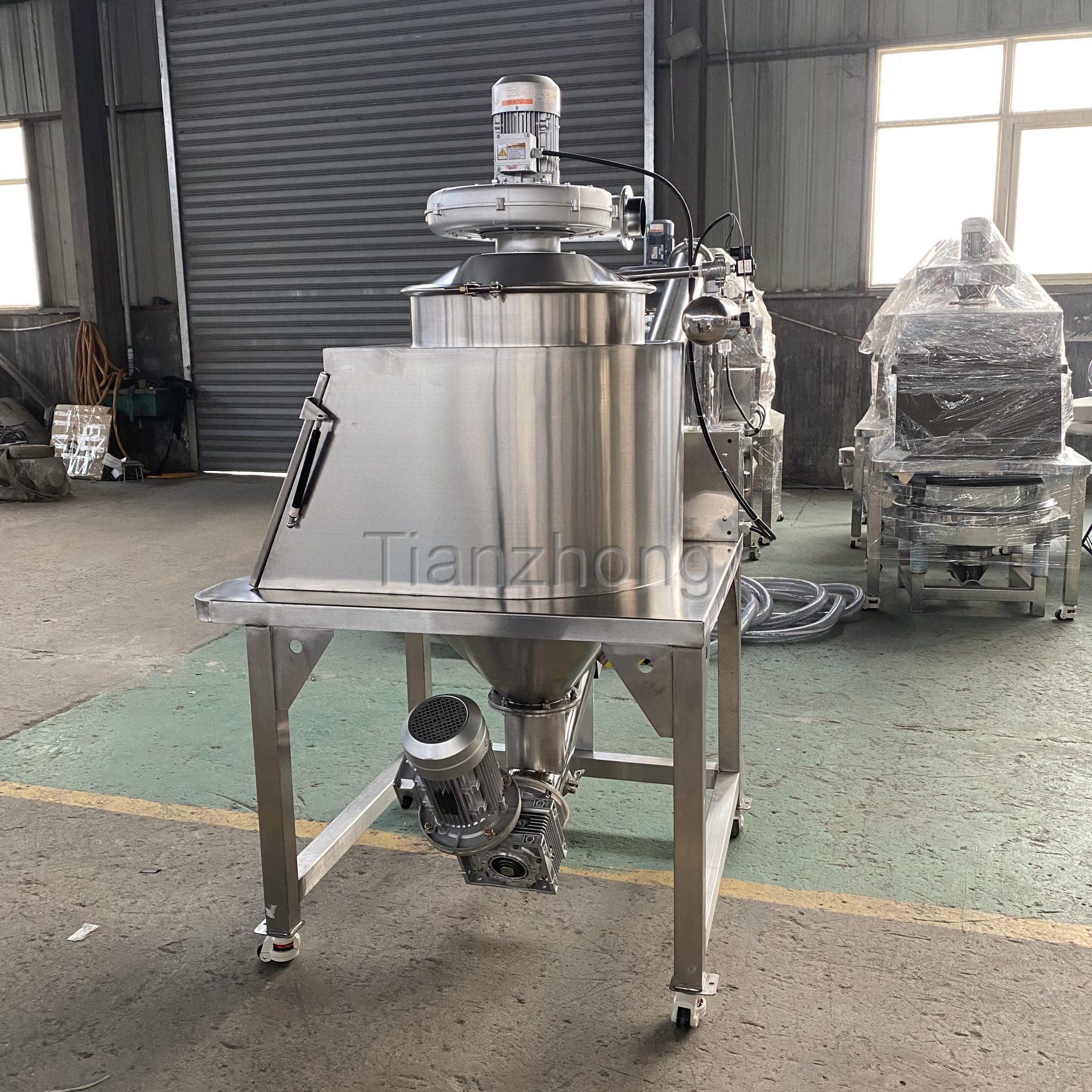

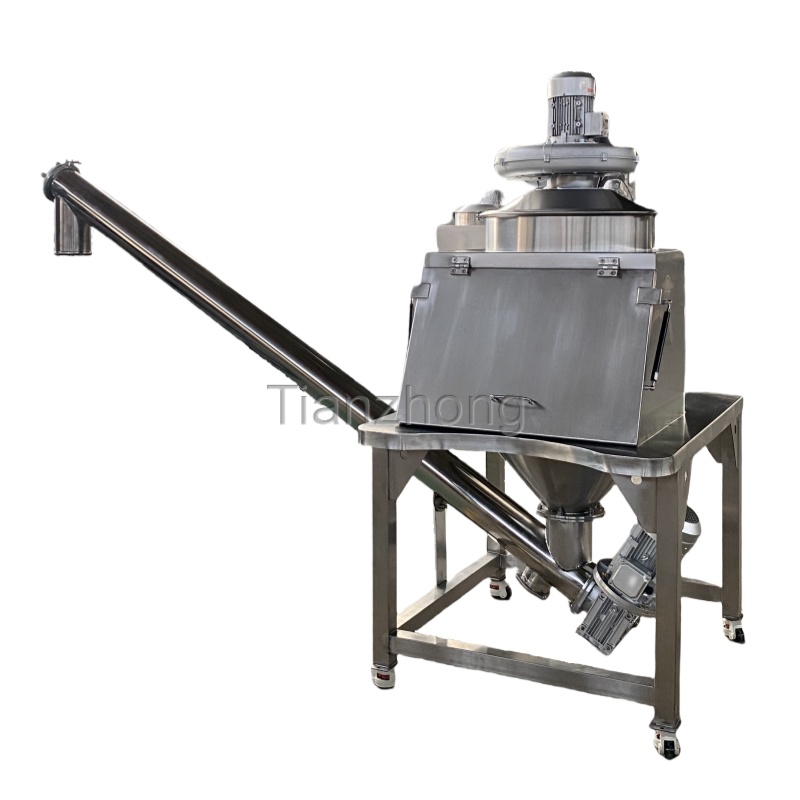

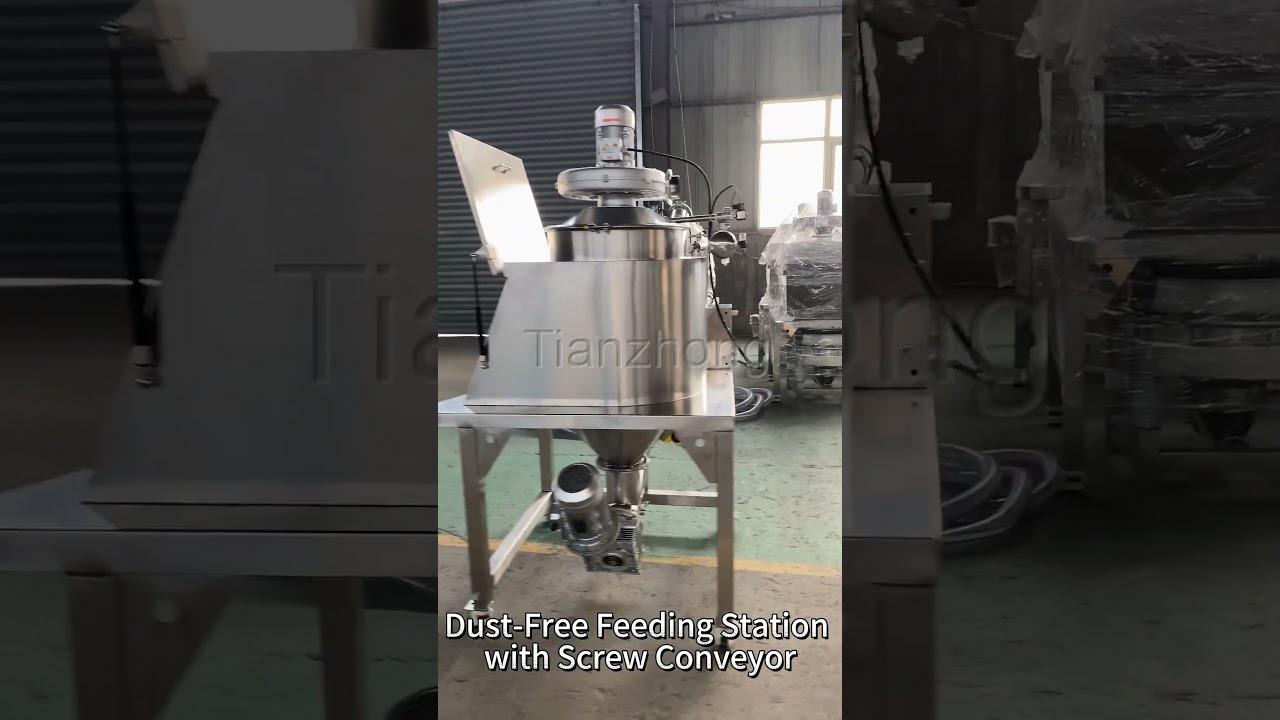

Dust-free feeding station with screw conveyor is a kind of automated equipment for handling powder and granular materials, aiming at realizing dust-free and airtight feeding process, which is widely used in chemical, pharmaceutical, food and other industries.
Effectively prevent dust from flying, protect the environment and health of operators.
The equipment is designed to be airtight, reducing material waste and environmental pollution.
Simple structure, easy to operate, easy to maintain and clean.
Stainless steel, carbon steel and other materials can be selected according to demand.
Can be customized according to user requirements to meet different production needs.
Material feeding: Operators place material bags on the feeding platform, open the bag mouths, and the materials enter the feeding hopper under the force of gravity.
Dust collection: The fan starts, creating a negative pressure environment, and sucks the dust generated during the feeding process into the filter.
Material screening: The materials pass through a vibrating screen to remove large particles and impurities, ensuring the uniformity of the materials.
Material conveying: The screened materials are conveyed to the next process through conveying equipment.
| Model | Screening area | Power (kW) | Speed (r/min) | Dynamic load | Static load | Excitation force | Flow rate (kN) | Wind pressure |
|---|---|---|---|---|---|---|---|---|
| HC-800 | 0.42 | 2×0.15 | 1460 | 500N | 1500N | 2.5×2 | 1550–997 | 1217–1641 |
| HC-1000 | 0.64 | 2×0.25 | 1460 | 800N | 2500N | 5×2 | 1550–997 | 1217–1641 |
Chemical industry: Processing various chemical raw materials such as pigments, additives, etc.
Pharmaceutical industry: for dust-free feeding of APIs, excipients, etc.
Food industry: Processing food raw materials such as milk powder, sugar powder, seasonings, etc.
According to the customer's upstream and downstream products and on-site space, we modify the equipment size and customize the equipment structure to meet the customer's needs.
Specialized in production for 15 years, serving 30+ countries worldwide, the technical team is experienced to ensure the efficient and stable operation of the equipment.
From the selection of materials to the factory, the implementation of ISO9001 standards, 100% full inspection of key components, to ensure the durability and reliability of the equipment.
24-hour response, provide installation, commissioning, maintenance one-stop support, full tracking after-sales, to ensure worry-free production.
Own production base, no middleman price difference, support customized production, lower price and faster delivery for the same quality.
Provide lifelong technical support, over the warranty period is still enjoying the cost of maintenance, equipment full life cycle protection.
Henan Tianzhong Vibration Equipment Co., Ltd. integrates “research and development, production, sales and service”, with an annual production capacity of more than 5,000 units, and its products cover the three major fields of vibrating screening, conveying and lifting, and dust removal, including rotary vibrating screen, vacuum feeder, dust-free feeding station, ton bag feeding station, and customized various kinds of dust-free powder supply system, which are committed to dozens of series of dust-free powder screening and mixing one-stop solutions. The products are widely used in medicine, chemical industry, abrasives, ceramics, mining, food, metallurgy and other industries, and for a long time for the domestic more than 150 counterparts to provide OEM services, and many large-scale enterprises to establish long-term supporting cooperation. Relying on standardized CAD design and strict quality control system, our products are known for high precision and stability, and are exported to the United States, France, Russia, Australia and Southeast Asia and other countries and regions.
Want to know the best price or customization options? Contact us today.
Send us your material and requirements — we’ll recommend the right model for you.
We are a high-tech enterprise specializing in the research, development and production of vibrating screening, conveying and lifting, crushing and mixing equipment, with products including but not limited to:
●Vacuum Feeder
●Small Bag Dust-free Feeding Station
●Ton Bag Feeding Station
●Powder Supply System
●Circular Swing Screen Series
●Vibrating Screen
We support customized production to meet the special needs of different industries.
Of course, we will design according to customer requirements.
5-10 working days for conventional products.
We have a large factory in Xinxiang, China, covering an area of 12,000 square meters. Welcome to visit!
We usually accept T/T, L/C，T/T: 30% in advance as down payment, the balance before delivery.
We provide 1-2 years warranty (depending on the model), after-sales team responds within 24 hours, support remote guidance or on-site repair.
