Brand Name: Tianzhong
Place of Origin: Henan, China
Conveying Capacity(kg/h): 200–6000
Conveying Distance(m): 0-30
Compressed Air Consumption(L/min): 8-60
Gas Supply Pressure (MPa): 0.4-06
Power (kW): 1.5-18.5
Customization Services: All components can be customized
Applicable Industries: Food Industry, Pharmaceutical Industry, Chemical Industry,Battery Materials, Silicon Materials, Metals, Metallurgical Mining, Non-Metallic Industries, etc.

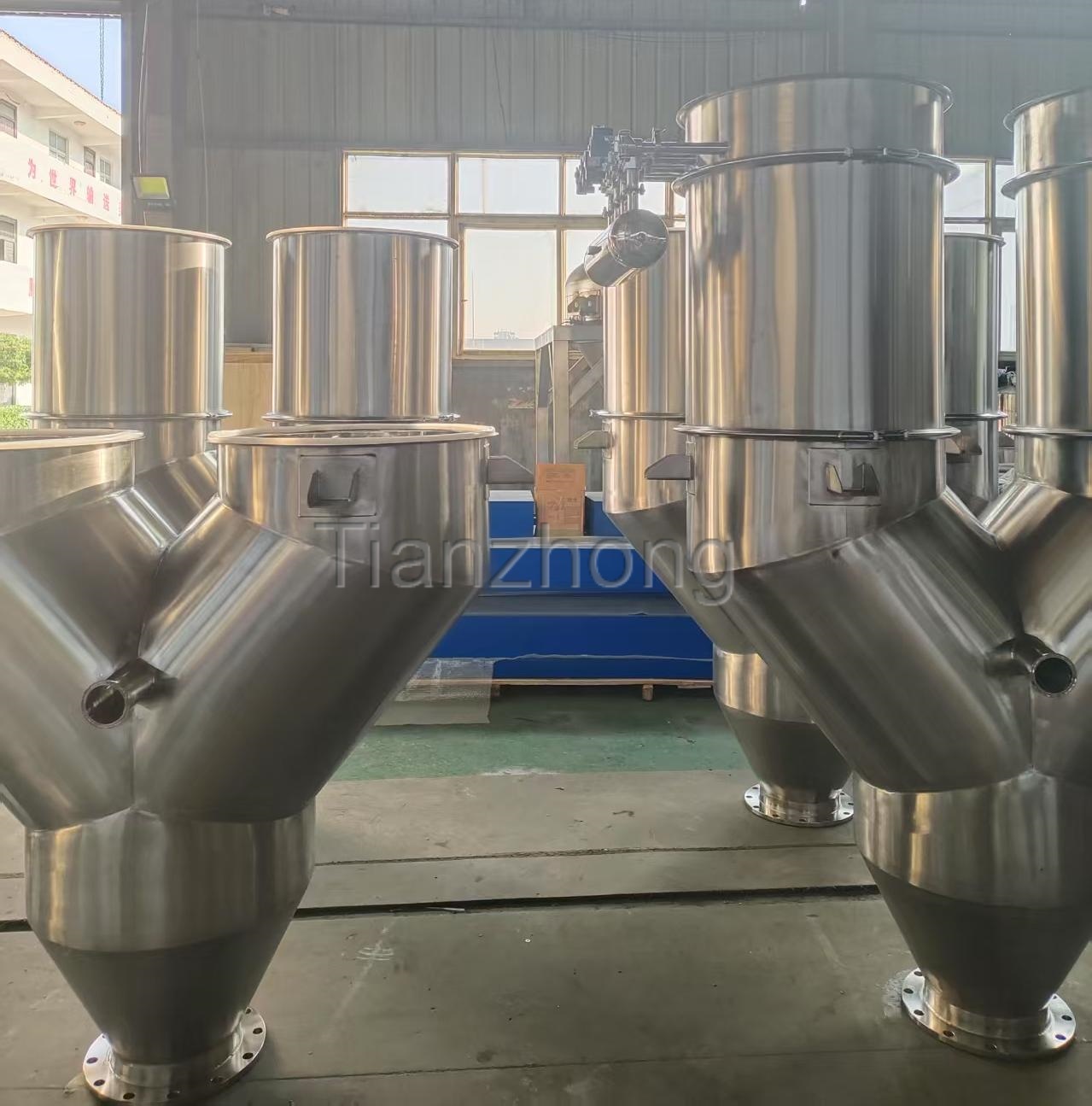

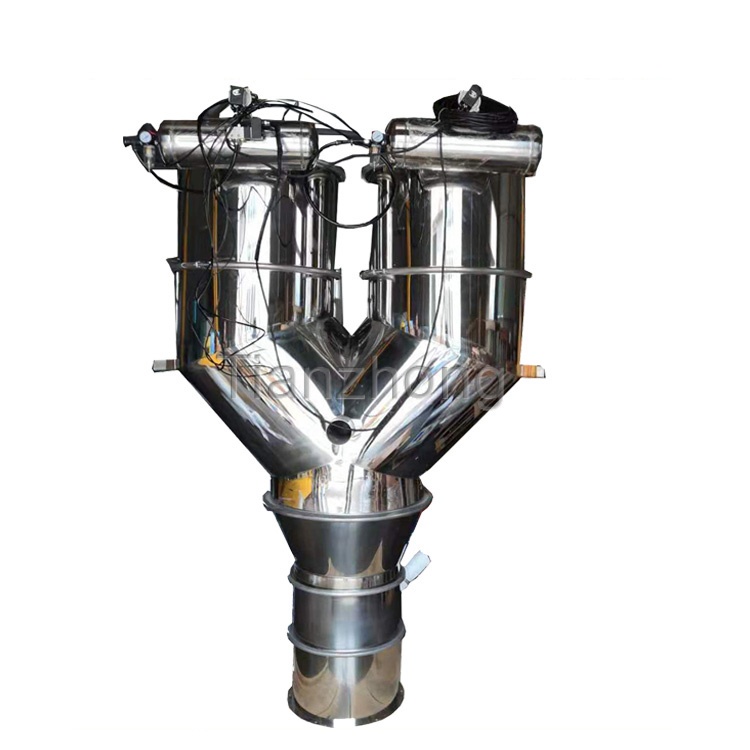

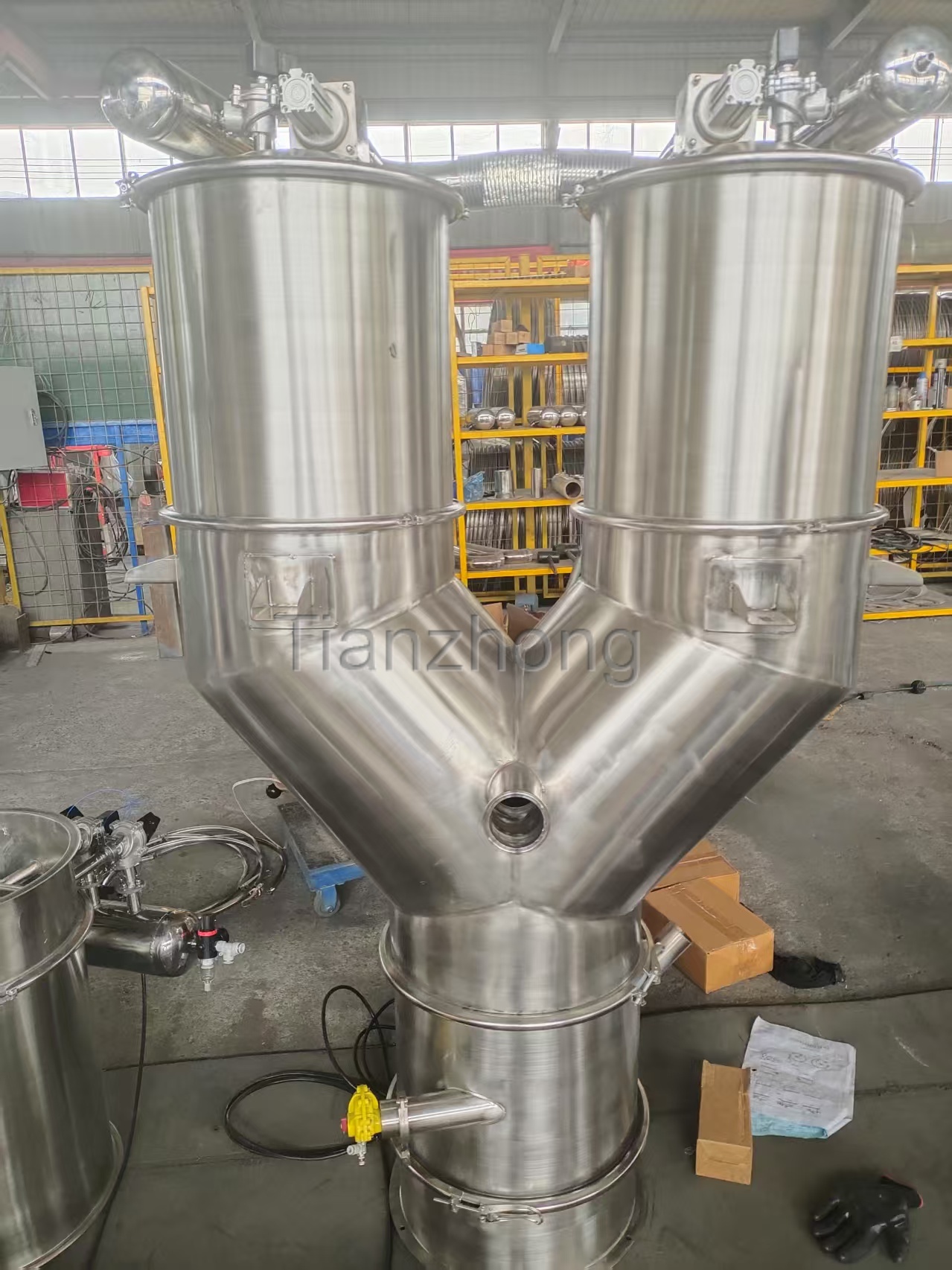

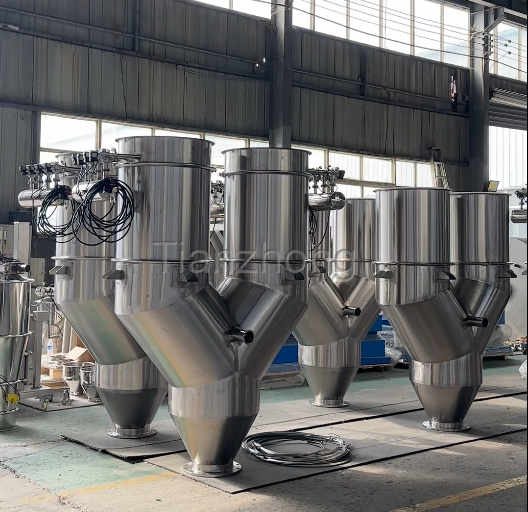

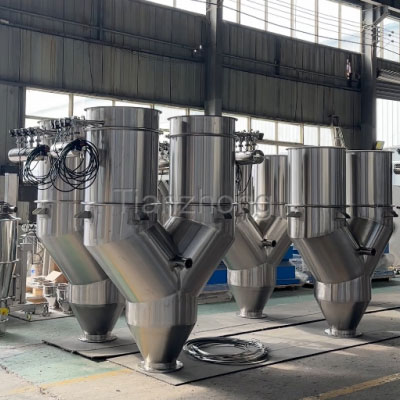

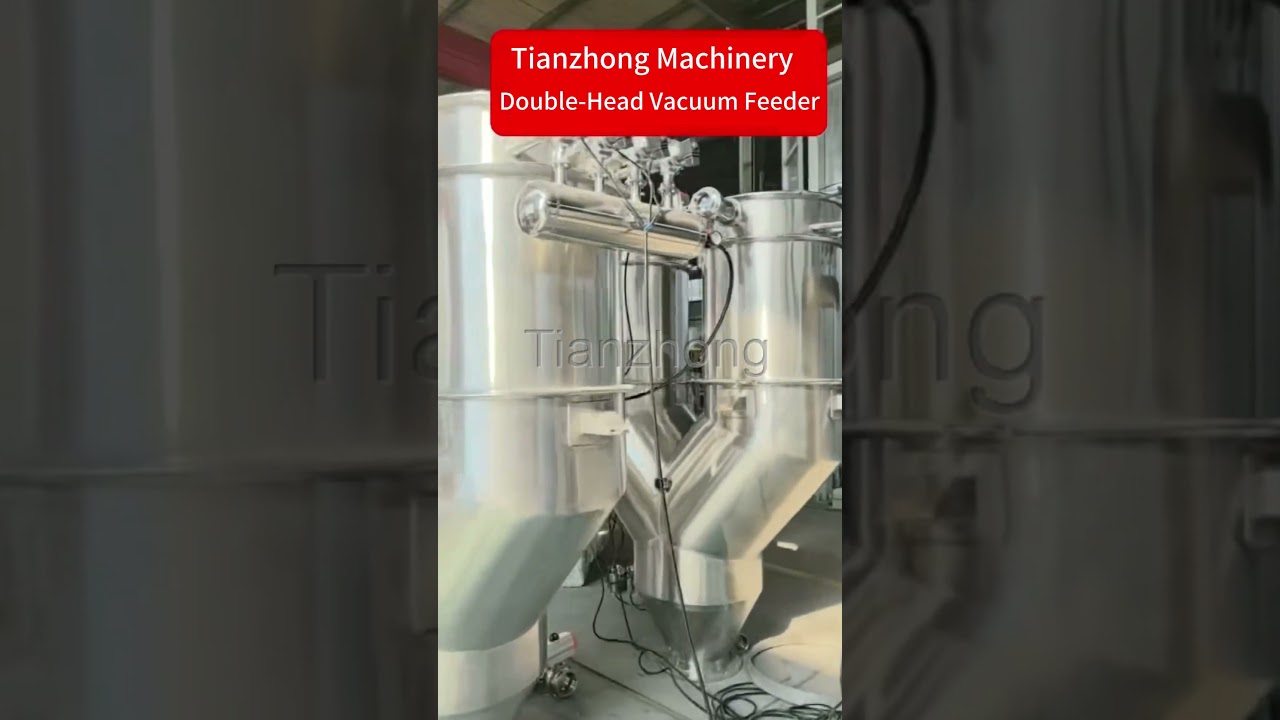

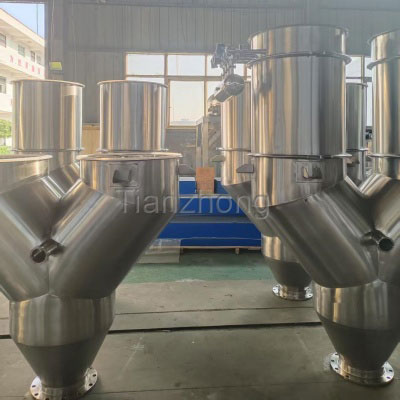

Double-head vacuum feeder is a kind of dust-free closed pipeline conveying equipment to transmit particles and powder materials with the help of vacuum suction, using the vacuum and the difference in air pressure in the environmental space to form the flow of gas in the pipeline to drive the movement of powder materials, so as to complete the conveying of powder.
Materials are transported in closed pipes to prevent dust pollution.
Quickly complete material transport and improve production efficiency.
High degree of automation reduces labour intensity.
Can transport a variety of materials and adapt to different working environments.
Simple structure, easy to maintain and clean.
Double-head vacuum feeder is a device that uses the principle of vacuum negative pressure to transport materials. It is widely used in industries such as pharmaceuticals, food, and chemicals. The vacuum feeder uses a vacuum pump to create negative pressure within the system, sucking materials from a silo or container into the conveying pipeline and ultimately delivering them to the target location.
| Model | Power (kW) | Compressed air consumption (L/min) | Gas supply pressure (MPa) | Conveying capacity (kg/h) | Conveying distance |
|---|---|---|---|---|---|
| HCZKS-290 | 1.5 | 8 | 0.4-0.6 | 200-400 | Within 5 meters |
| HCZKS-290 | 2.2 | 10 | 0.4-0.6 | 300-600 | Within 5 meters |
| HCZKS-290 | 3 | 10 | 0.4-0.6 | 400-1200 | Within 5 meters |
| HCZKS-420 | 5.5-Single | 12 | 0.4-0.6 | 800-2500 | Within 5 meters |
| HCZKS-420 | 5.5-Double | 12 | 0.4-0.6 | 1000-3200 | Within 5 meters |
| HCZKS-600 | 7.5-Double | 17 | 0.4-0.6 | 2000-4000 | Within 5 meters |
| HCZKS-600 | 7.5-Tri | 20 | 0.4-0.6 | 2000-6000 | Within 10 meters |
| HCZKS-600 | 11-Double | 20 | 0.4-0.6 | 2000-6000 | Within 20 meters |
| HCZKS-600 | 11-Tri | 20 | 0.4-0.6 | 2000-6000 | Within 30 meters |
| HCZKS-600 | 15-Double | 20 | 0.4-0.6 | 2000-6000 | Within 30 meters |
| HCZKS-600 | 15-Tri | 20 | 0.4-0.6 | 2000-6000 | Within 30 meters |
| HCZKS-600 | 18.5-Double | 20 | 0.4-0.6 | 2000-6000 | Within 30 meters |
| HCZKS-600 | 18.5-Tri | 20 | 0.4-0.6 | 2000-6000 | Within 30 meters |
Suitable for transporting powder and granular raw materials in various industries, accepting customised designs such as corrosion-resistant, anti-adhesive, and high-temperature resistant structures.
According to the customer's upstream and downstream products and on-site space, we modify the equipment size and customize the equipment structure to meet the customer's needs.
Specialized in production for 15 years, serving 30+ countries worldwide, the technical team is experienced to ensure the efficient and stable operation of the equipment.
From the selection of materials to the factory, the implementation of ISO9001 standards, 100% full inspection of key components, to ensure the durability and reliability of the equipment.
24-hour response, provide installation, commissioning, maintenance one-stop support, full tracking after-sales, to ensure worry-free production.
Own production base, no middleman price difference, support customized production, lower price and faster delivery for the same quality.
Provide lifelong technical support, over the warranty period is still enjoying the cost of maintenance, equipment full life cycle protection.
Henan Tianzhong Vibration Equipment Co., Ltd. integrates “research and development, production, sales and service”, with an annual production capacity of more than 5,000 units, and its products cover the three major fields of vibrating screening, conveying and lifting, and dust removal, including rotary vibrating screen, vacuum feeder, dust-free feeding station, ton bag feeding station, and customized various kinds of dust-free powder supply system, which are committed to dozens of series of dust-free powder screening and mixing one-stop solutions. The products are widely used in medicine, chemical industry, abrasives, ceramics, mining, food, metallurgy and other industries, and for a long time for the domestic more than 150 counterparts to provide OEM services, and many large-scale enterprises to establish long-term supporting cooperation. Relying on standardized CAD design and strict quality control system, our products are known for high precision and stability, and are exported to the United States, France, Russia, Australia and Southeast Asia and other countries and regions.
Want to know the best price or customization options? Contact us today.
Send us your material and requirements — we’ll recommend the right model for you.
We are a high-tech enterprise specializing in the research, development and production of vibrating screening, conveying and lifting, crushing and mixing equipment, with products including but not limited to:
●Vacuum Feeder
●Small Bag Dust-free Feeding Station
●Ton Bag Feeding Station
●Powder Supply System
●Circular Swing Screen Series
●Vibrating Screen
We support customized production to meet the special needs of different industries.
Of course, we will design according to customer requirements.
5-10 working days for conventional products.
We have a large factory in Xinxiang, China, covering an area of 12,000 square meters. Welcome to visit!
We usually accept T/T, L/C，T/T: 30% in advance as down payment, the balance before delivery.
We provide 1-2 years warranty (depending on the model), after-sales team responds within 24 hours, support remote guidance or on-site repair.
